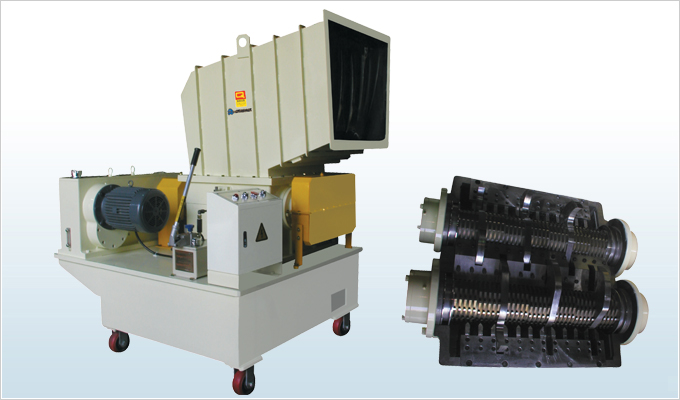

HOME | PRODUCT INFO | SCUTTER CRUSHER SERIES

Model Capacity
(㎏/hr)		 Hopper
A×B(㎜)		 M/C size
(W×L×H)(㎜) 		Weight(㎏) Motor
㎾(HP)		 Rotary blade
cutter size(㎜)		 S-Cutter
Dia Φ		 R.P.M
SJL-10 85~100 625×700 1370×1810×1980 1900 7.5(10) 8×8, 10×10 360 29
SJL-10S 1950 11(15)
SJL-20 145~180 815×900 1400×2430×2070 3000 15(20) 8×8, 10×10 480 25

* 작은 이미지를 클릭하시면 큰 이미지로 볼 수 있습니다.

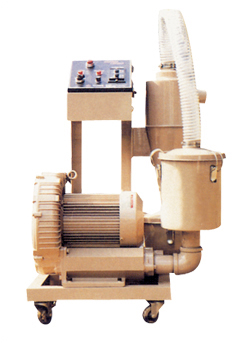

Hopper loader

Model Air Pressure
(㎜AQ)		 Air Quantity
(m²/min)		 Power
Kr(HP) 		Feeding
Capacity
(㎏/hr)		 Feeding Line
(㎜)		 Vacuum Line
(㎜)
SJAL-2 2700 4.2 1.5(2) 200 Φ38 Φ50
SJAL-3 3400 5.2 2.2(3) 280 Φ38 Φ50
SJAL-5 3500 6.5 3.7(5) 450 Φ50 Φ65

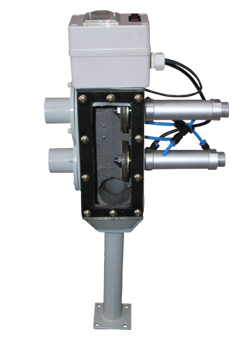

Selector

Model Mixing Capa
(㎏/Hr)		 Suction Die
(㎜)		 Pressure
(㎏/㎝²)		 Dimension(W×L×H)
(㎜)
SJL-38 200 Φ38 5~7 150×370×390
SJL-50 300 Φ50 5~7 150×370×390
